TME Introduces PIC MCUs with Built-in FPGA Capabilities

The new PIC16F131xx microcontrollers (MCUs) in TME’s offer from Microchip are ideal for the evolving and miniaturizing electronic equipment market, offering efficient power management and predictable response times for controllers.

Key features include core independent peripherals (CIPs) like the configurable logic block (CLB), which allows for predictable circuit behavior without burdening the CPU, thereby saving energy. Based on the classic 8-bit Harvard architecture, these MCUs come in various packages (DIP, DFN, SSOP, TSSOP, SOIC, and VQFN) with 6 to 18 I/O pins, and support a wide voltage range (1.8V to 5.5V DC). They operate at a 32 MHz clock frequency, with instruction execution times as low as 125 ns, and offer 256 to 1024 bits of SRAM and up to 14 kB of FLASH program memory.

The MCUs are equipped with an array of peripherals, including PWM generators, counters/timers, EUSART serial bus controllers, and MSSP modules for I2C or SPI operation. They also feature configurable comparators, an 8-bit DAC, and a 10-bit ADC with hardware processing capabilities (ADCC)

The core independent peripherals (CIPs) allow the MCUs to handle tasks like sensor communication without using the CPU, thus enhancing efficiency and simplifying programming. The CLB technology, a highlight of the PIC16F131xx series, uses basic logic gates configurable by the designer, facilitating functional safety and rapid response times.

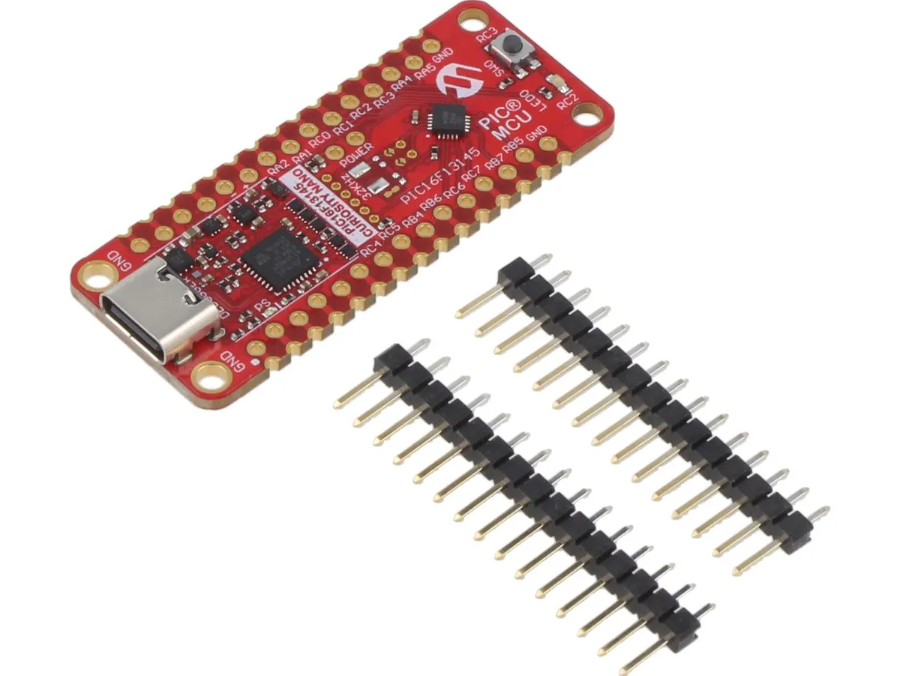

The Curiosity Nano development kit for the PIC16F131xx series offers a convenient platform for exploring the MCUs’ capabilities, featuring an integrated debugger, programming device, and access to MCU pins. The EV06M52A kit, equipped with the PIC16F13145 MCU, includes a USB-C port for power and programming, an LDO MIC5353 regulator, a green LED for power and programming status, a yellow LED, and a button for user interaction.

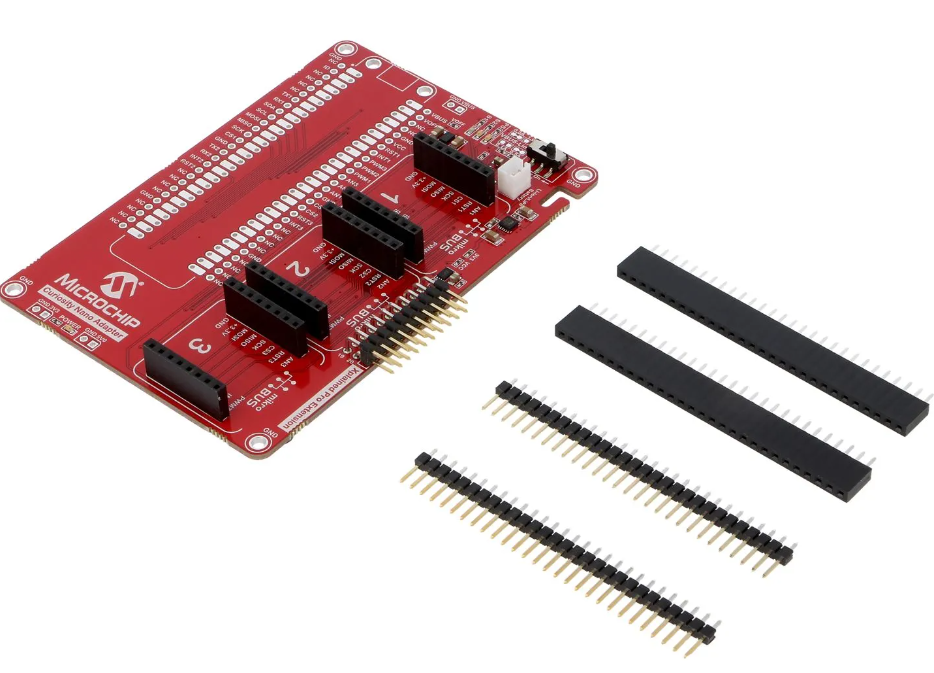

Additionally, adapters like the AC164162 extend the functionality of the Curiosity Nano boards, offering compatibility with mikroBUS standard connectors and an integrated charging system for lithium-ion and lithium-polymer cells.


The new MCU series from Microchip offer efficient power management, predictable response times, and innovative features like core independent peripherals (CIPs) and configurable logic blocks (CLB). Ideal for modern embedded systems, these MCUs come in various packages and support a wide voltage range, enhancing their versatility and performance. The Curiosity Nano development kit and its adapters further facilitate easy development and prototyping.

These products are available in TME’s offer, providing a comprehensive solution for designers and developers looking to leverage the latest advancements in MCU technology.
