293D105X9016A2TE3 Tantalum Capacitor: Features, Benefits, and Applications

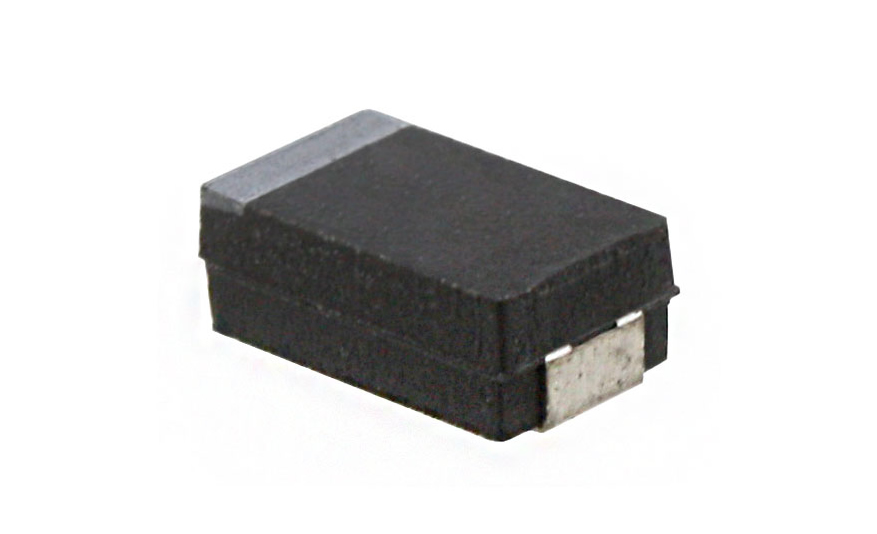

The 293D105X9016A2TE3 is a high-quality surface-mount (SMD) tantalum capacitor, renowned for its compact size, stable performance, and suitability for a variety of electronic applications. As part of the tantalum capacitor family, it is known for its low equivalent series resistance (ESR), making it highly efficient in filtering and energy storage applications.
1. Key Specifications of 293D105X9016A2TE3:
- Capacitance: 1.0µF
- Rated Voltage: 16V
- Tolerance: ±10%
- ESR: Low ESR, which ensures efficient power delivery and minimizes energy loss
- Case Size: A (compact, optimized for space-saving designs)
- Operating Temperature Range: -55°C to +125°C
- Mounting Type: Surface-mount (SMD)
2. Advantages of the 293D105X9016A2TE3 Tantalum Capacitor:
The 293D105X9016A2TE3 capacitor offers several benefits, making it a go-to choice for engineers and designers working on high-performance electronics:
- Compact Design: Despite its small form factor, the capacitor provides stable performance, making it ideal for applications where space is limited.
- Low ESR: With its low equivalent series resistance, the 293D105X9016A2TE3 ensures minimal energy loss, making it perfect for high-efficiency power circuits.
- High Stability: It maintains a stable capacitance value over a wide range of temperatures and voltages, making it reliable in demanding environments.
- Durability and Reliability: Tantalum capacitors are known for their long life and reliability, making them suitable for applications where long-term stability is critical.
3. Applications:
The 293D105X9016A2TE3 tantalum capacitor is widely used across various industries, including:
- Power Supply Filtering: This capacitor is commonly used in power supply circuits to filter out noise and stabilize voltage, ensuring smooth and efficient operation of electronic devices.
- Mobile and Consumer Electronics: It is ideal for smartphones, tablets, and other compact devices where space is a constraint but performance cannot be compromised.
- Telecommunications: The 293D105X9016A2TE3 capacitor is used in communication devices where stable, high-performance filtering is required to support data and voice transmission.
- Automotive Electronics: Its high reliability and temperature stability make it suitable for automotive systems, such as engine control units and infotainment systems, where dependable operation is critical.
- Industrial Equipment: The capacitor is also used in control systems and industrial machinery, offering long-lasting reliability and high performance in tough conditions.
4. Conclusion:
The 293D105X9016A2TE3 tantalum capacitor provides an excellent balance of performance, stability, and compact design, making it a preferred choice for a variety of modern electronic systems. Its low ESR and stable capacitance ensure efficient operation, making it suitable for power-sensitive applications such as mobile devices, automotive systems, and industrial equipment. Engineers looking for a reliable and space-saving solution will find the 293D105X9016A2TE3 to be an ideal component in high-performance electronics.
